Architecture Diagrams - Some Thoughts

[A]in’t no engineer got time for [manually-updating and -tracking architecture diagrams]; that’s a moving target and a fool’s errand to keep updated!

Architecture Diagrams - Some Thoughts

The Problem

Let’s again say you have a site, say, One Cup Coding.

This site is fairly simple right now, but it would be nice to draw up an architecture diagram so that I know what I’ve built.

There are several ways to accomplish this goal, but the typical Fortune 50 approach is, “throw a team of people responsible for only this at that problem!”

That’s silly for quite a few reasons, but let’s address the issue we will also face as individuals: ain’t no engineer got time for that; that’s a moving target and a fool’s errand to keep updated!

There’s got to be a way to take my IaC code and make that generate a diagram, right?

One Solution - TF –> CFT –> AWS Console –> CloudFormation Designer view

This was the first approach I took, and it worked moderately well and could integrate with my SAM templates I had built.

1. Convert Terraform configuration files to a CloudFormation Template (CFT) file.
2. Upload the CFT file to S3.
3. View using AWS Console –> CloudFormation –> Import from S3 –> View in Designer

This … worked, but it locked me into the Designer and didn’t really inter-operate with other tools in my tool-chain. Every time I wanted to make an update, I’d have to go through this process, move a couple boxes around, and export the diagram. The raw diagram, of course, was not available on my local machine for manipulation.

A Better-Seeming Solution

I came across CDK for Terraform as well as a Python plugin diagrams for parsing through Python-based CDK and generating a diagram.

That looked really promising, but I didn’t feel like getting my Terraform configuration files into Python, or otherwise trying to run CDK for Terraform in reverse to get back to CDK code from Terraform configuration files.

I had read quite some time ago about a standalone tool from AWS called CloudFormer, but that tool is long-gone. It has since been replaced by a tool which you can run–even locally!–to effectively do an everything-to-everything generation.

I’m now using this tool to scan my AWS configuration, then select the resources I want to include, then generate a diagram (embedded Draw.io) as mutable output. It’s a pretty decent setup.

Some caveats, as I’ve not been able to conduct a full security audit on the tool:

1. Before handing my credentials to the tool–use your IaC credentials for scoping–I assigned the AWS-managed ReadOnly policy to the account.
2. I ran the tool.
3. I then created new credentials and invalidated the old ones for that account.

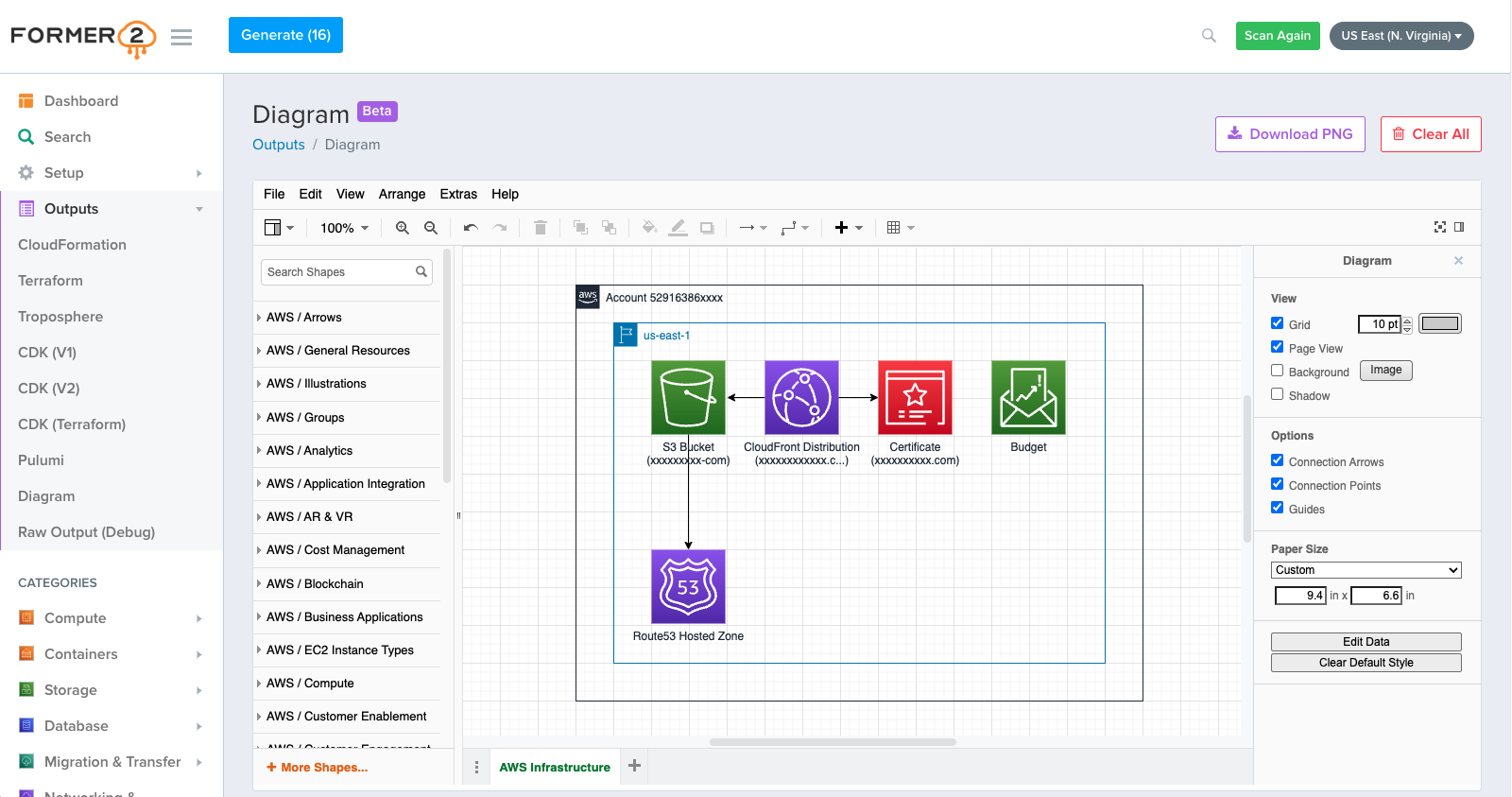

Use and Output

Summary

1. Head to the GitHub repo for Former2
2. git clone into a working directory
3. Follow the instructions to build and run the Docker image locally
4. Apply ReadOnly permissions to your IaC account, note its aws_access_key_id and aws_secret_access_key
5. Feed these to the Former2 instance running on your local machine
6. Scan all, then select which resources to include in the output from the left-hand-navigation
7. See/tweak output as-desired
8. Rotate credentials for your IaC user account
9. Invalidate the previous credentials for your IaC user account
